SH-100 Hot Chamber Die Casting Machine

Zinc Die Casting Machine

SH-100 is the most popular choice of all our models. It performs stable and reliable production and meets your demands for die casting in all perspectives. Equip with our exclusively designed automatic equipment brings you a safer environment for your frontline operators.

Maximum die locking force: 110 tons
Applicable product dimension: 385mm x 385mm

Product Specifications

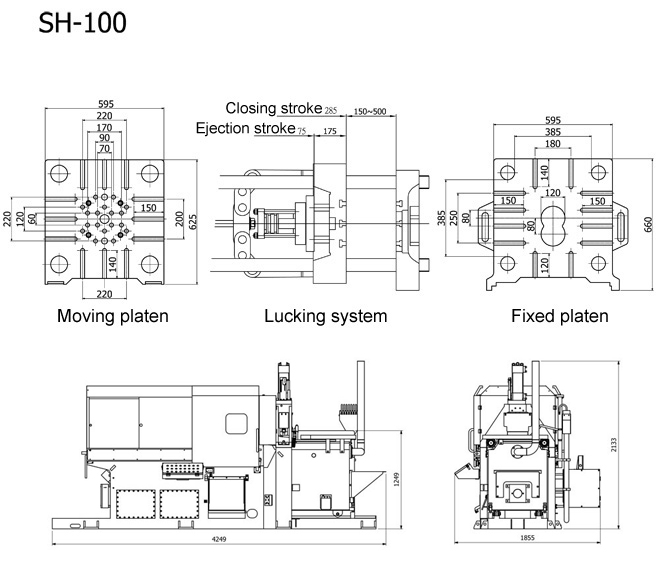

Size Specifications
Model Comparison

SH-100 HOT CHAMBER DIE CASTING MACHINE
Item		Unit	SH-100
Die Locking Force		ton	110
Tie Bar Diameter		mm	70
Die Platen Diameter (WxH)		mm	585x585
Tie Bars Spacing (WxH)		mm	385x385
Closing Stroke		mm	285
Die Thickness		mm	150~500
Nozzle Break Stroke		mm	200
Ejection Force		ton	7.5
Ejection Stroke		mm	7.5
Injection Force		ton	8.6
Injection Stroke		mm	150
Plunger Tip Diameter		mm	55	60
Max. Casting Pressure		kgf/cm²	362	304.3
Max. Casting Area		cm²	303.8	361.5
Max. Casting Weight		g	1600	1800
Nozzle Position	Center	mm	0
	Standard	mm	-80
	Adjustable	mm	0; -80
Melting Pot Capacity		kg	400
Hydraulic Pump Prssure		kg/cm²	100
Core Valve		pcs	1
Oil Tank Capacity		l	280
Motor		hp	20
Machine Weight		ton	5.5
Machine Size (LxWxH)		cm	429x185x213

	SH-40	SH-100	SH-160	SH-250	SH-350
Die Locking force Ton	50	110	170	270	350
Injection Force Ton	4	8.6	12.2	13	18.47
Tie Bars Space mm	280x280	385x385	460x460	540x540	580x580
Die Thickness mm	100~400	150~500	150~500	200~550	250~650
Max. Casting Weight g	750~950	1600~1800	2600~2900	4000~4300	4000~4970
